    Modular Front Plate

    DataVoice

    Modular Front Plate

    for 19″ 1 HU FO Patch Panels

    (Download brochure (PDF

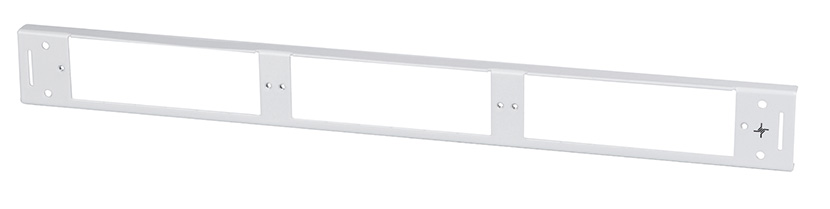

    Modular Front Plate.01

    The growing number of different optical connectors in networks increasingly necessitates the use of mixed equipment in patch panels.
    With the modular front plate for 19” 1 HU FO patch panels, up to three 3 HU/7 TU front plates for ST, SC, LC and E2000 adaptors can be fitted. A maximum number of different connector faces can therefore be implemented on just one height unit. The special design enables the modular front plate to be fitted to different 19” 1 HU FO patch panels.

    Order No. Description
    H02025A0610 Modular Front Plate for 19“ 1 HU FO Patch Panels for maximal 3 pcs. 3 HU/7 TU front plates

    Suitable 19“ 1 HU FO Patch Panels

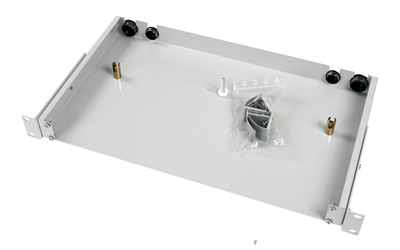

    Modular Front Plate.02
    Description Order No.
    Housing
    BASIS V 1 HU    		 H02030A0293

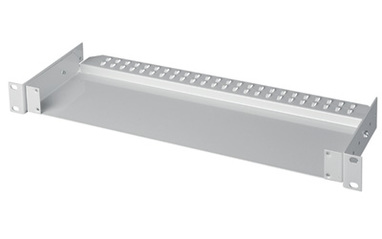

    Modular Front Plate.03
    Description Order No.
    Housing
    ECONOMY V 1 HU    		 H02024A8111

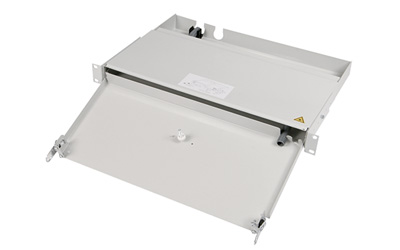

    Modular Front Plate.04
    Description Order No.
    Housing
    PROFI V 1 HU    		 H02030A0400

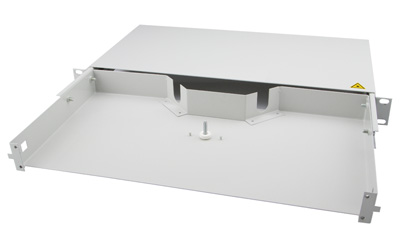

    Modular Front Plate.05
    Description Order No.
    Housing
    PROFI T 1 HU    		 H02030A0662

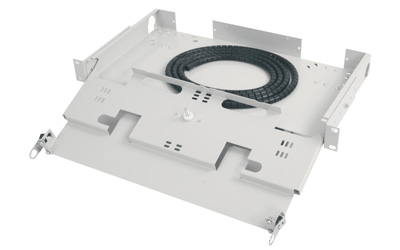

    Modular Front Plate.06
    Description Order No.
    Housing
    PROFI Plus 1 HU    		 H02030A0425

    Suitable 3 HU/7 TU Front Plates

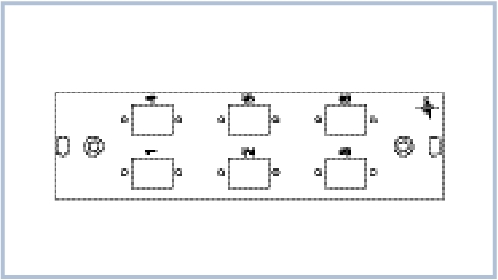

    Modular Front Plate.07
    Type Order No.
    6x SC, ST/SC H02024A8100
    Modular Front Plate.08
    Type Order No.
    6x SC Duplex; 6x ST/SC Duplex; 6x LC Quad H02024A8101

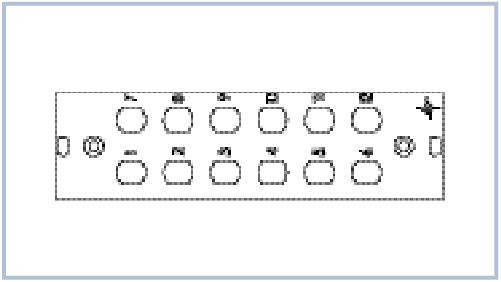

    Modular Front Plate.09
    Type Order No.
    12x ST H02030A0048
    Modular Front Plate.10
    Type Order No.
    12x E2000 H02024A8334

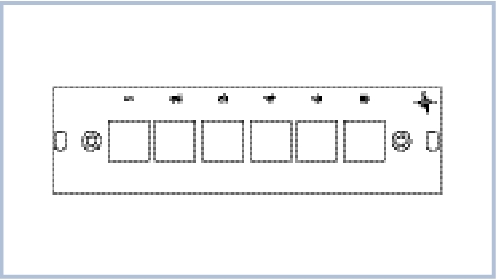

    Modular Front Plate.11
    Type Order No.
    6x LC Duplex H02024A8105

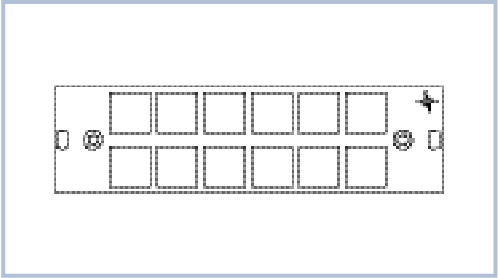

    Modular Front Plate.12
    Type Order No.
    12x LC Duplex H02024A8125

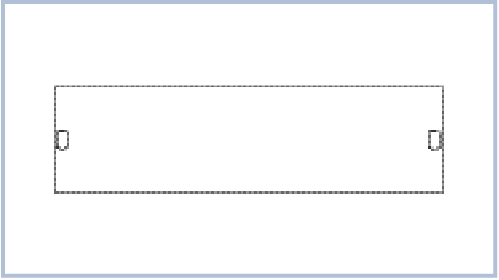

    Modular Front Plate.13
    Type Order No.
    dummy plate H02023A8002

    LWL-Products in the DataVoice Online Catalogue
