Photovoltaic Junction Box
For Thin Film Modules
For Thin Film Modules

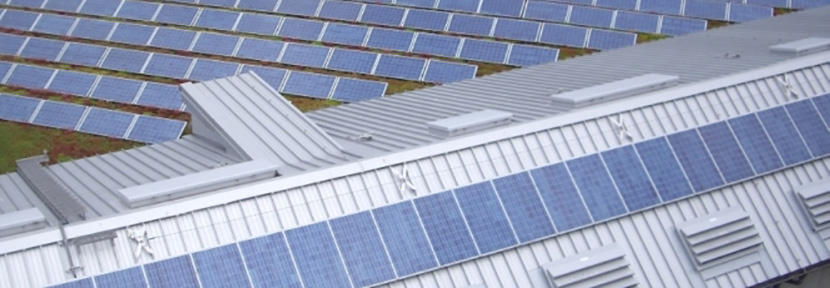

Die Erzeugung von elektrischem Strom aus Sonnenlicht wird heute mehr denn je mit Dünnschicht-Photovoltaik-Modulen durchgeführt. Telegärtner Gerätebau hat sein vorhandenes Know-How der Kontakttechnik in die Entwicklung unterschiedlicher Anschlusssysteme für Photovoltaik-Module eingebracht.

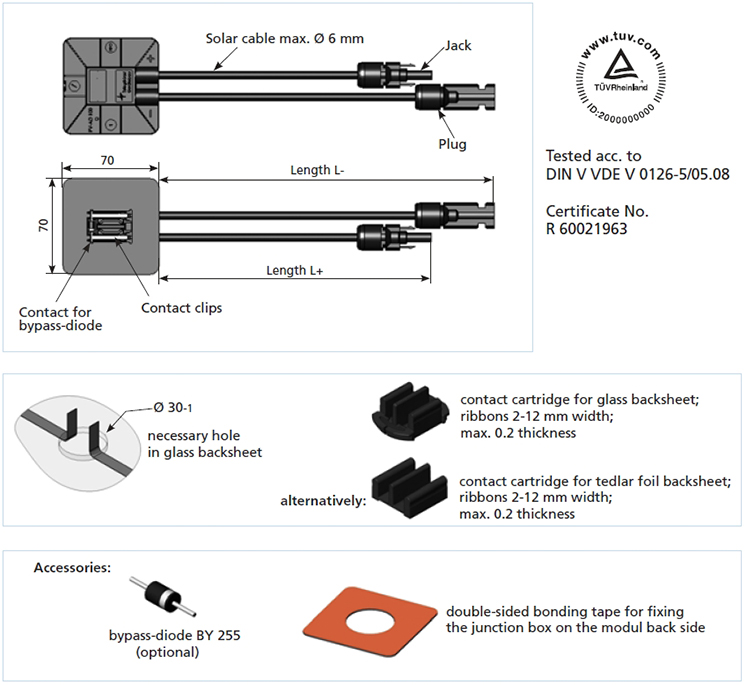

Beside a lot of customized solutions the two-pole standard junction box PV-AD 100 was delevoped. It is suitable for glass backsheet as well as tedlar foil backsheet.
The box is characterized by very small height and quick installation. In combination with cables and connectors by customers request a connection system is generated which is assembled and connected at the modul in short time.
This junction box is certified by TÜV Rheinland.
| Photovoltaic Junction Box | ||||
| 5 A | Rated current without bypass-diode |
|||
| 2 A | Rated current with bypass-diode | |||
| 1000 V DC | Max. system voltage |
|||
| 6 kV | Testing voltage | |||
| < 5 mOhm | Contact resistance |
|||
| Copper, tin-plated | Contact material | |||
| Stainless steel, copper-plated and tin-plated | ||||
| PPO | Housing material | |||
| PA | Insulation material |
|||
| IP67 | Degree of protection | |||
| UL94-V0 | Flam class |
|||
| -40°C to +90°C | Temperature range | |||
| finely stranded copper cord, tin-plated on IEC 60228, class 5 | Cable | |||
Cable lengths and connectors on request.
