RF Components for
Production Line Testing / Lab Test and Measurement / Field Test and Measurement
RF Components for
Production Line Testing / Lab Test and Measurement / Field Test and Measurement

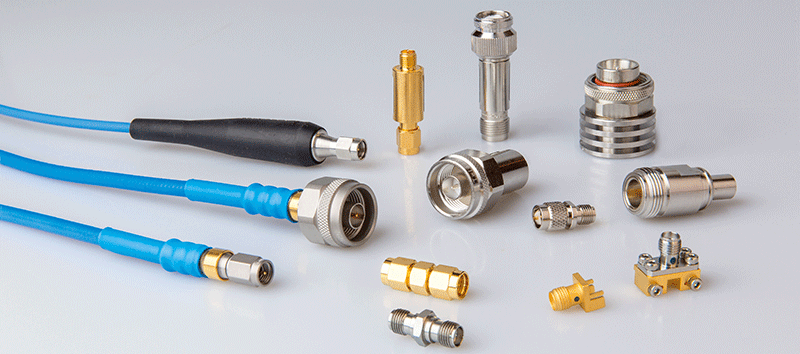

Under the brand name “TestLine”, Telegartner has developed an extensive portfolio for various test and measurement requirements. The TestLine components can be used in lab and field test and measurements as well as production line testing.
Applications in the laboratory require a high level of quality and precision. For R&D sites and company labs Telegartner offers solutions for almost every requirement – from high quality measurement cables, through termination loads to precision adaptors.

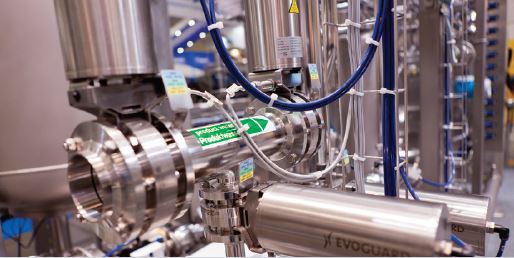

For production line testing in factories and production sites, measurements should be carried out quickly and reliably. In harsh environments, mechanical stability, robustness, and longevity without loss in the signal quality are required.
Tests and measurements in the field require resistance to external influences. Also just as crucial are good handling and quick installation in the field.

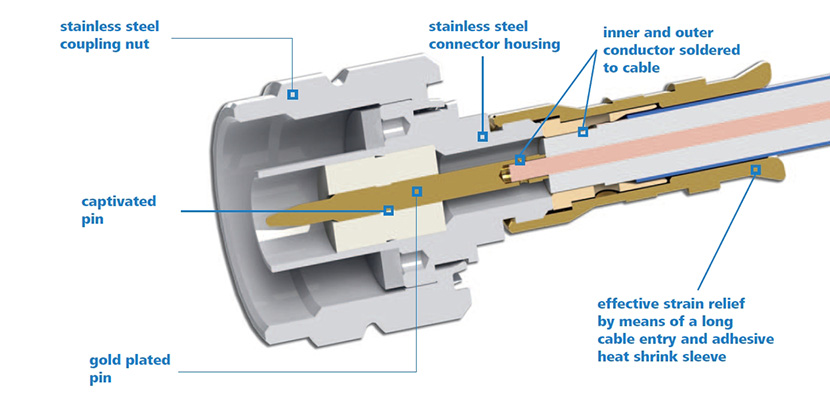

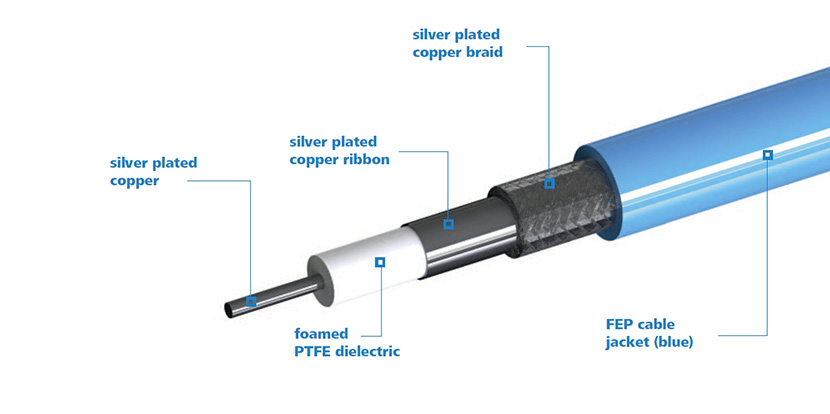

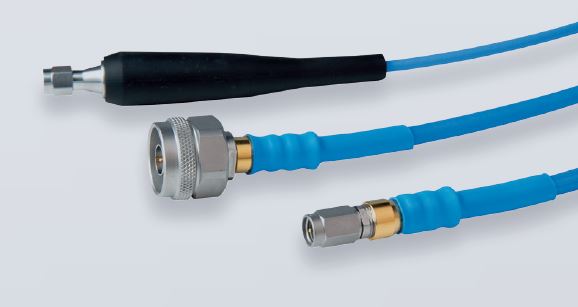

The high quality TestLine RF measurement cables have a particularly effective cable protection against mechanical stress while at the same time satisfying the highest requirements for electrical transmission characteristics regarding attenuation, phase stability and life span.

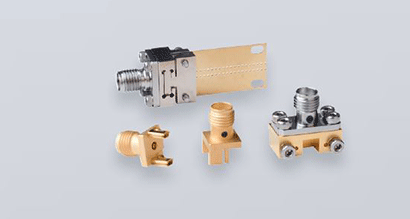

PCB precision connectors allow tests and measurements to be carried out on PCBs. This can mostly be found in applications in test labs and R&D sites. Edge mount and End launch versions are available for 2.92 mm and SMA types up to 40 GHz and 27 GHz respectively.

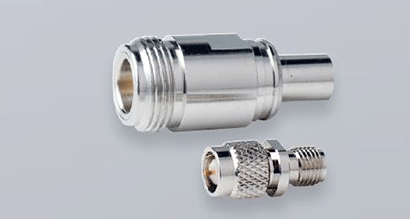

Telegärtner offers a range of high quality 2.92 mm, 3.5 mm, SMA and N precision adaptors for test purposes, which can be used for almost every requirement. The TestLine adaptors are specially designed for a high number of mating cycles and have excellent RF properties.

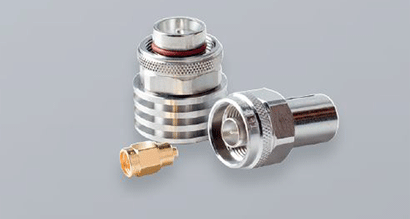

By using port savers you spare the sensitive jacks on the equipment from wear and tear and avoid the costly exchange of these connectors. The port saver is available for 2.92 mm, SMA, N and 7-16 types. The use of the Quick/Push-on Test Adaptors allows a marked reduction in connection time. As such, these products lend themselves perfectly to test beds and production lines.
Telegärtner offers a wide variety of high quality TestLine 4.3-10, 7-16, N, TNC, BNC, SMA and R-SMA termination loads. The termination loads are used to test and terminate RF transmitters and amplifiers.

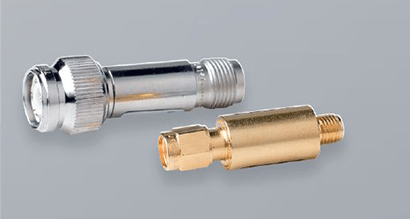

The Telegärtner TestLine attenuators are used to weaken RF signals. Up to a frequency of 6 GHz, a precise signal attenuation of 3, 6, 10 or 20 dB depending on type is achieved. Application fields for attenuators in test and measurement are where the RF performance needs to be set at certain levels.
